موتور براشلس a42212/5t 2450KV متفرقه

188,000 تومان

- +
شناسه محصول: 00000358884 دسته: ,
آخرین به روز رسانی :
فروردین ۱, ۱۴۰۰ @ ۴:۱۹ ب.ظ

توضیحات

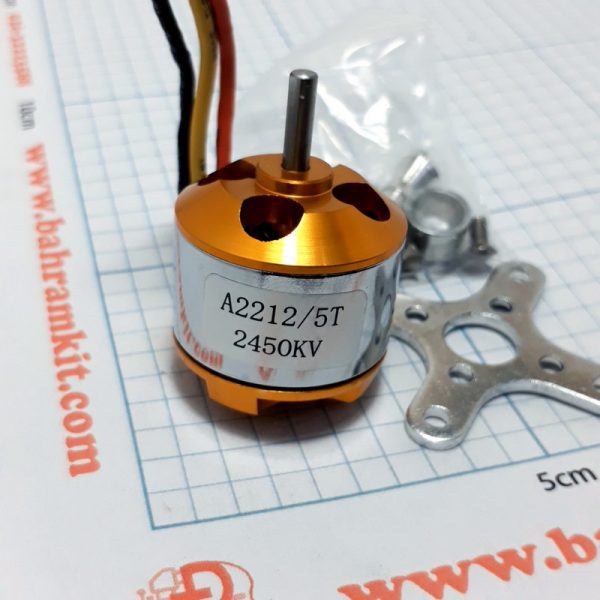

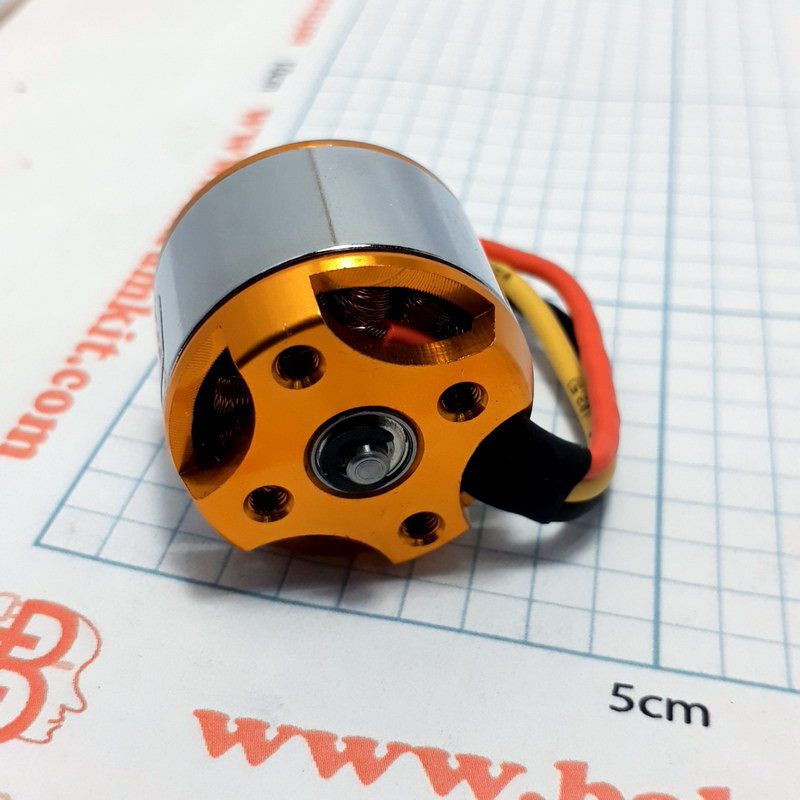

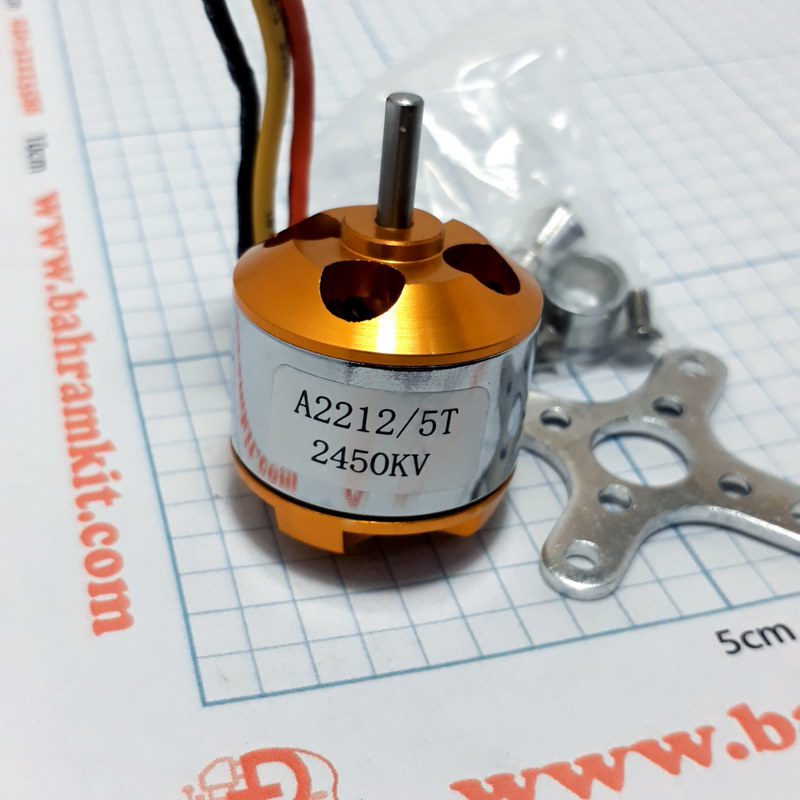

A2212/5T 2450KV Brushless DC Motor For RC Quadcopters Planes Boats Vehicles and DIY Kits
This A2212/5T 2450KV Brushless DC Motor For RC Quadcopters Planes Boats Vehicles and DIY Kits. 5T (BLDC) BRUSHLESS DC MOTOR is one of the most popular high-speed brushless motor designed specifically for RC hobbyists. The motor is outrunner type where outside case rotates while inside stays fixed. It is one of the popular models in the market because it’s low cost. It is preferred for small drones and planes. The motor features a 3.17mm hardened steel shaft and dual ball bearings for a smooth and steady rotating motion. A bullet type propeller adapter and cross motor mount are included. As it is a 3-phase motor, speed and efficiency are high. It comes with a motor mount, dome-type alloy prop spinner/adaptor, screws and 3.5mm banana connectors (Bullet plugs).

How to read the Motor Code

A2212/5T: It means 22mm motor diameter, 12mm motor shaft height and 5 turns per pole.

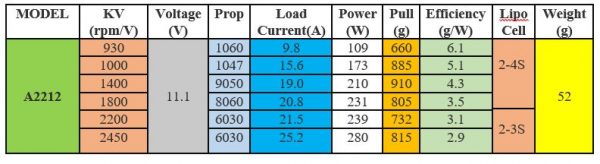

Specifications

Number of Cells: 2-3s lipo; 6-10 cell NiMh (2V to 12V)
Max Efficiency: 80%
Internal Resistance: 90mΩ
Max Current: 12A/60s
Max Watts: 280 W
Load Current: 25.2A
Shaft Size: 3.17mm
Weight: 52g (including all accessories)

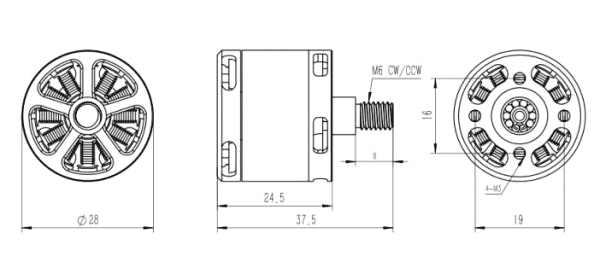

Dimensions: 27.5x30 (mm)
Minimum Recommended ESC: 12A
Recommended Model Weight: 300-1000g
Mounting holes: 3mm (M3)

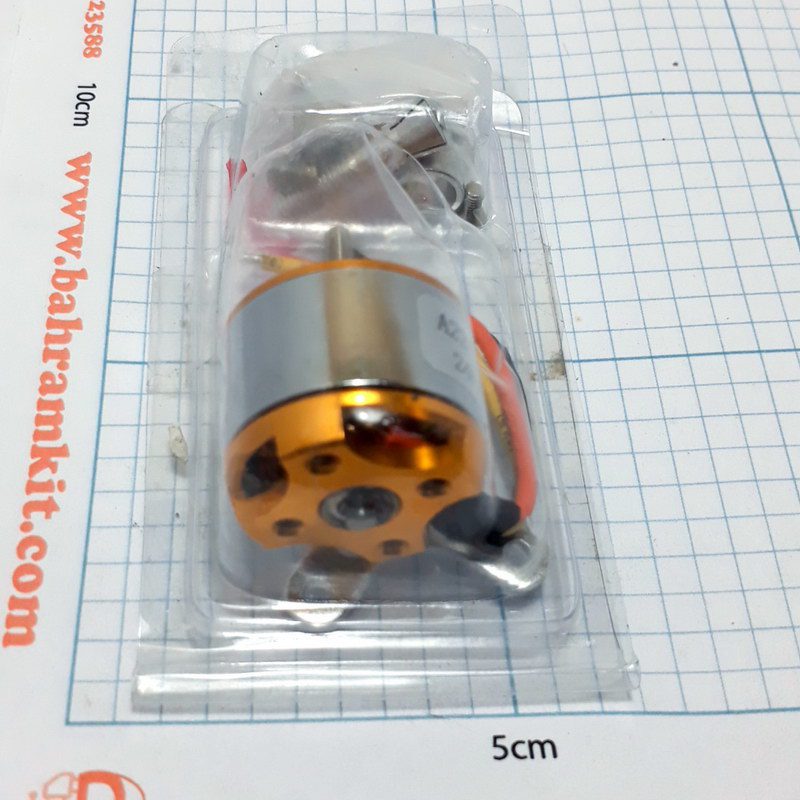

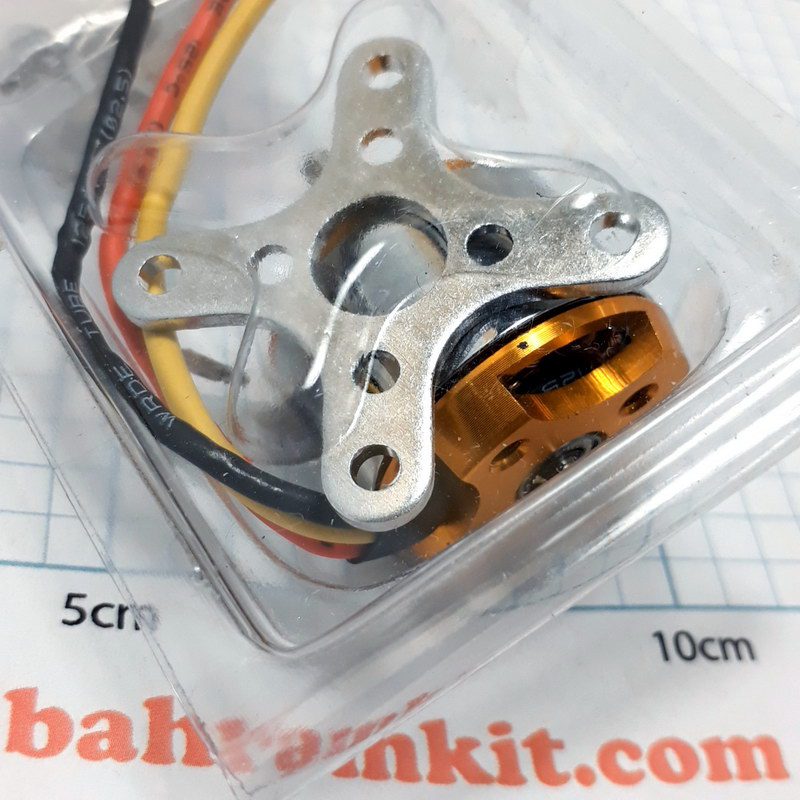

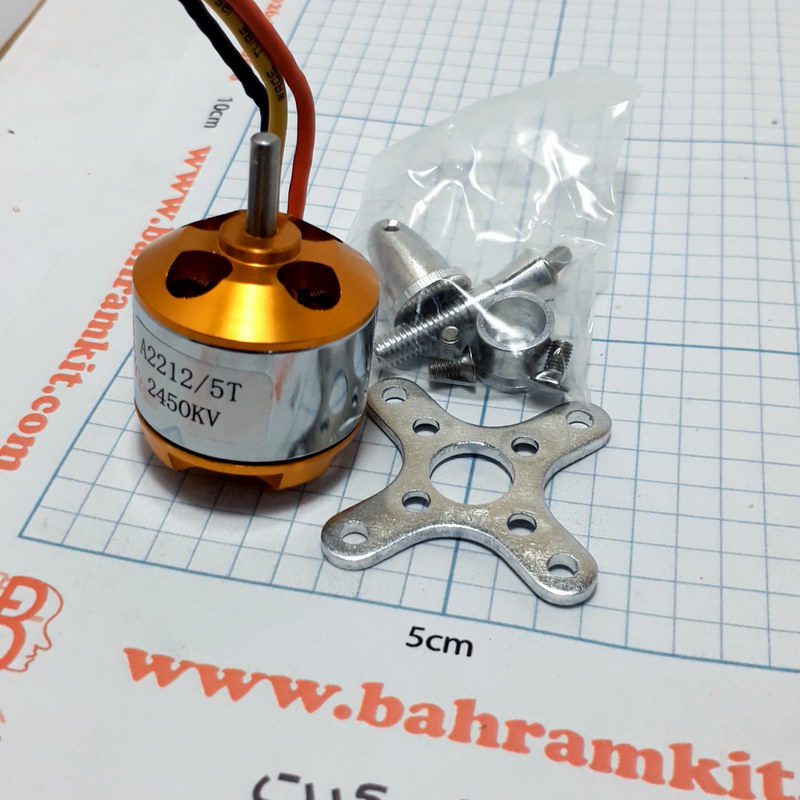

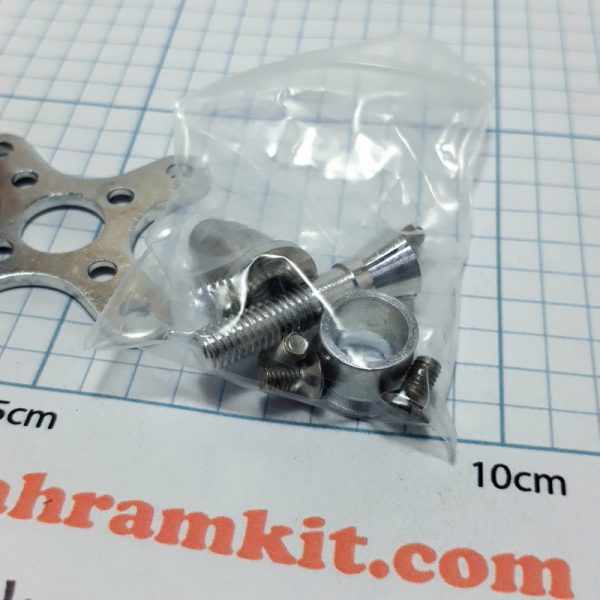

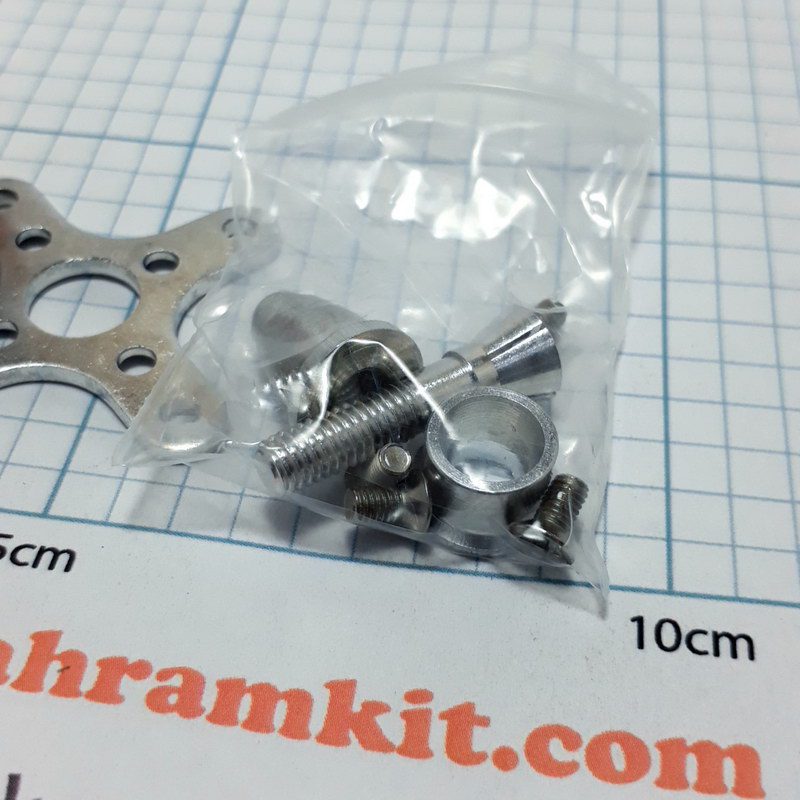

Package includes:

۱ x 2450KV BLDC Motor with bullet connectors
۱ x Motor mount
۱ x Prop adaptor
۴ x M3 Screws
