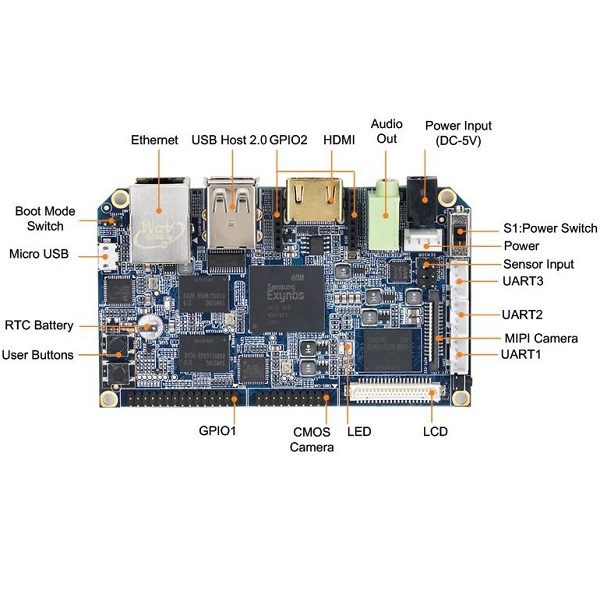

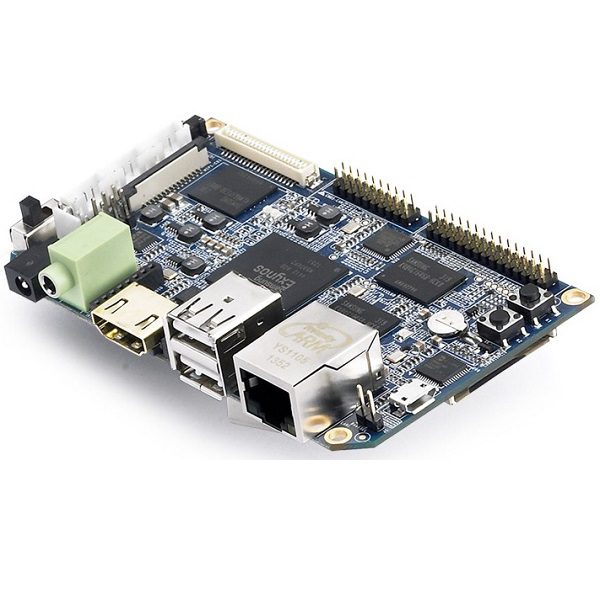

بورد نانو پی سی nano PC_T2

Feature :

• Dimension: 100 x 80 mm
• CPU: 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 (Quad-Core)
• RAM: 1 GB, 32 bit Bus
• Flash: up to 4GB eMMC Flash
• Ext. Memory: SD-Card socket
• Serial Ports: 3x serial port connectors
• USB: 1x USB-A Host 2.0, 1x MicroUSB Slave/OTG 2.0
• Audio Output: 3.5 mm stereo jack
• Ethernet: RJ-45 10/100M
• RTC: Real Time Clock with battery
• Camera: 20 pin (2.0 mm) Camera interface + 15 pin MIPI-CSI
• LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
• Monitor: HDMI
• User Inputs: 2x push buttons
• User Outputs: 2x LEDs
• Expansion: 30 pin GPIO1 + 16 pin GPIO2 + 6 pin Sensors (2.0 mm)
• Power: regulated 5V
• OS Support
  • Linux
  • Ubuntu
  • Android
