Hardware specification | ||
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
| GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 | |
| Memory (SDRAM) | ۱GB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot , up to 2T on 2.5 SATA disk ۸GB EMMC Flash | |
| Onboard Network | ۱۰/۱۰۰/۱۰۰۰M Ethernet RJ45 | |
| Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n | |
| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC | |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS | |
| Audio Output | ۳٫۵ mm Jack and HDMI | |
| Power Source | DC input can supply power, but USB OTG input don’t supply power | |
| USB ۲٫۰ Ports | Four USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power Button(SW4), Recovery Button(SW2), Uboot Button(SW3) | |
| Low-level peripherals | ۴۰ Pins Header,compatible with Raspberry Pi B+ | |
| GPIO(1x3) pin | UART, ground. | |
| LED | Power led & Status led | |
| Other | IR input | |
| Supported OS | Android, Ubuntu, Debian, Rasberry Pi Image | |

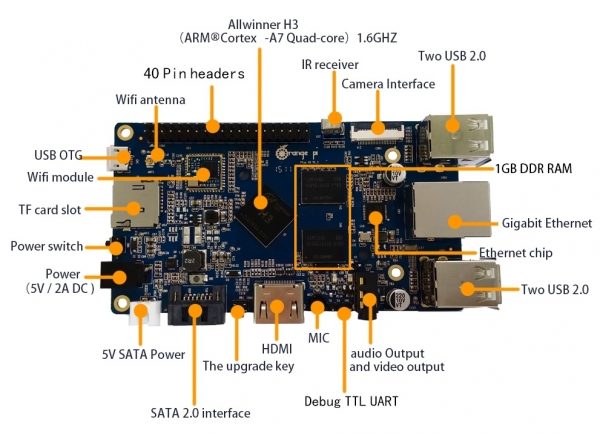

Interface definition | ||
| Product size | ۱۰۸mm × ۶۰mm | |
| Weight | ۵۰g | |
