توضیحات

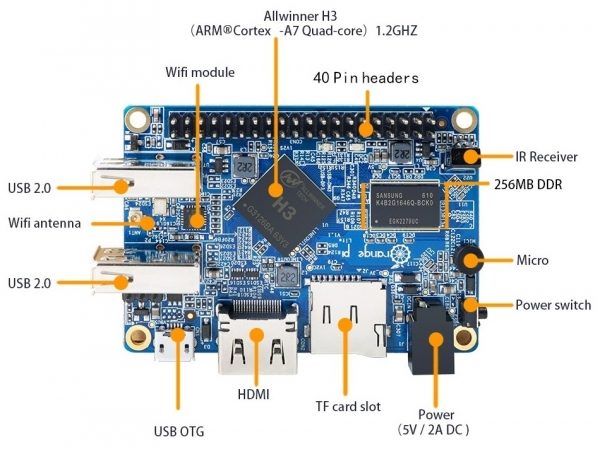

اورنج پای دو Orange Pi 2
اورنج پای لایت Orange Pi Lite
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
| GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 | |
| Memory (SDRAM) | ۵۱۲MB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. ۶۴GB) / MMC card slot | |
| Wi-Fi Antenna | Yes | |

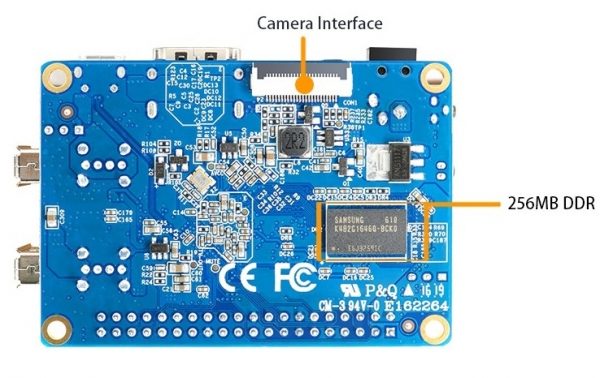

| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC | |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function | |
| Audio Output | HDMI | |
| Power Source | DC input, USB OTG input don't supply power | |
| USB ۲٫۰ Ports | Two USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power button | |
| Low-level peripherals | ۴۰ Pins Header, compatible with Raspberry Pi B+ | |
| GPIO(1x3) pin | UART, ground. | |
| LED | Power led & Status led | |
| Key | POWER | |
| Supported OS | Android Lubuntu, Debian, Raspberry Pi Image | |
| Interface definition | ||
| Product size | ۶۹mm × ۴۸mm | |
| Weight | ۳۶g | |
