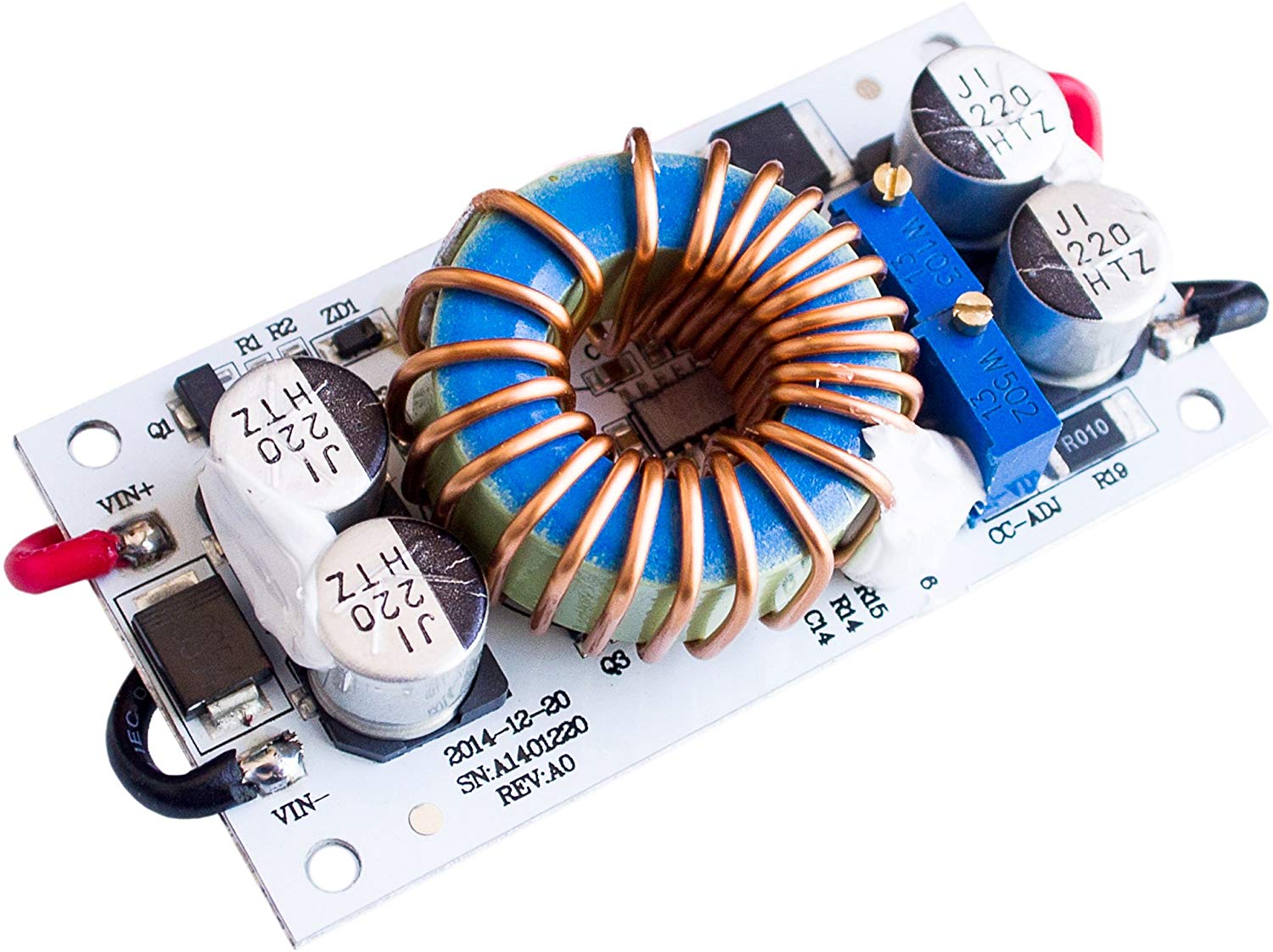

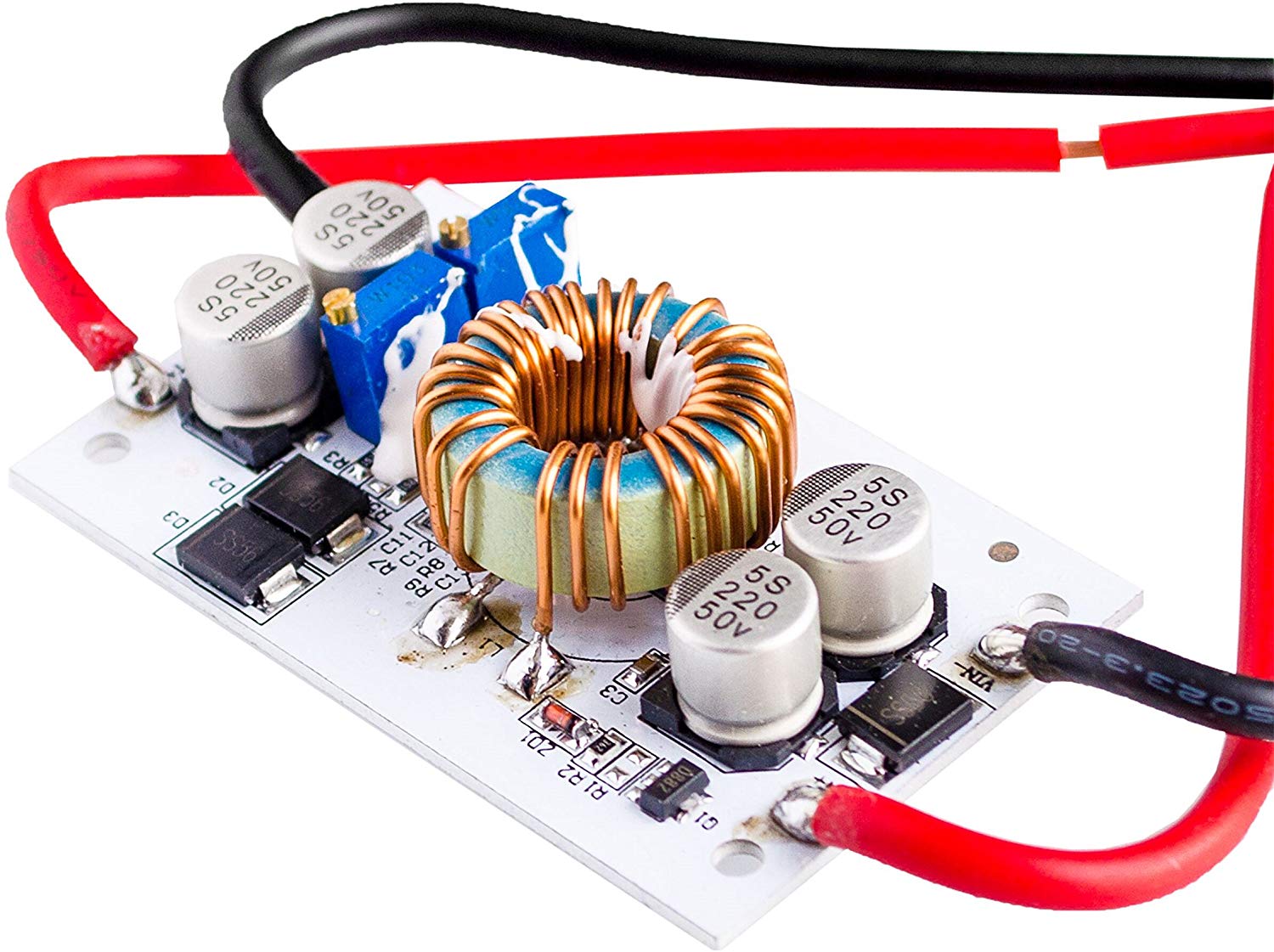

- Module properties: Non-isolated step-up module (BOOST)

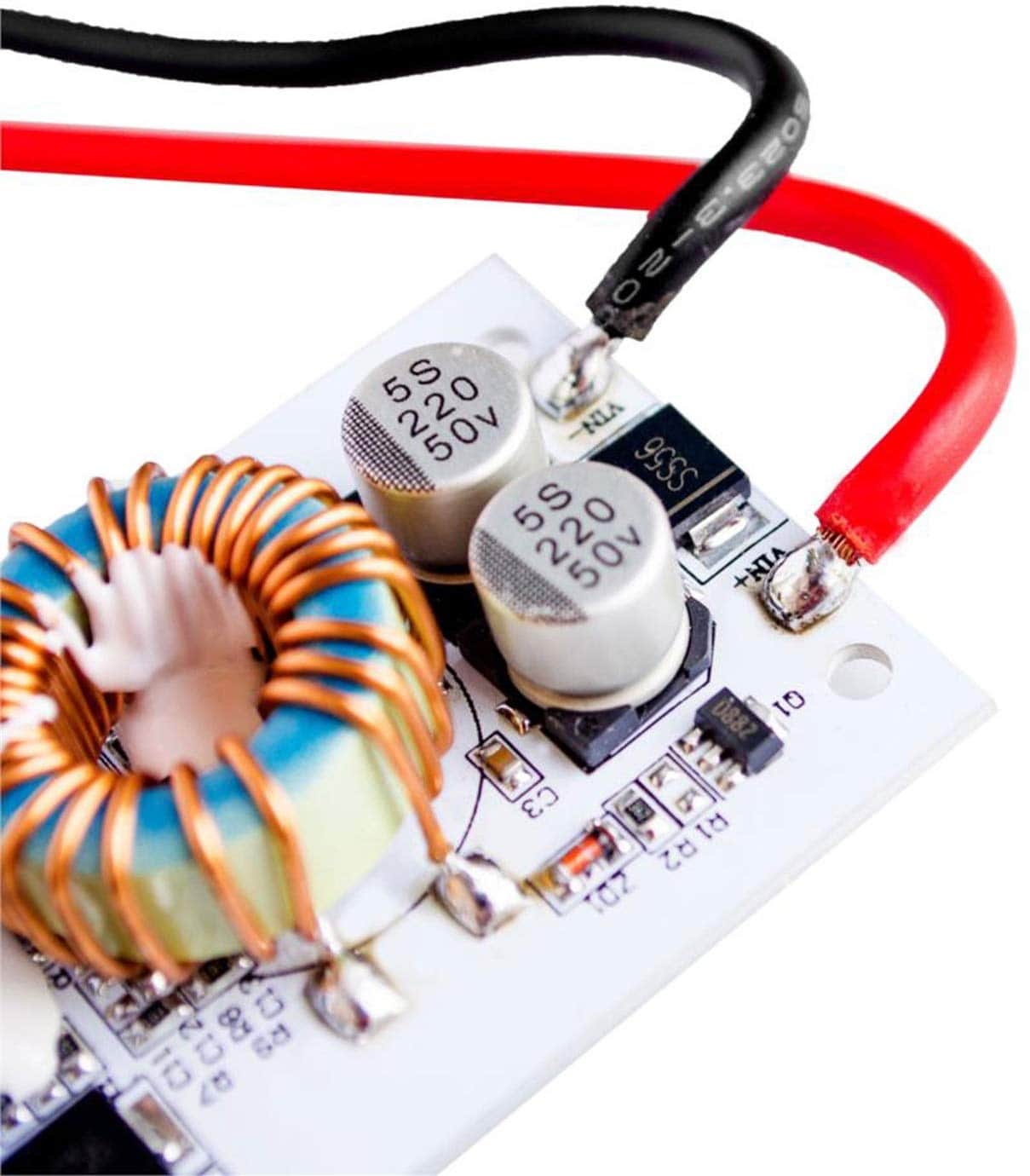

Input voltage : DC8.5V-48V
Input current : 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current : 10mA (12V liter 20V , the output voltage , the higher the current will increase too quiet )
Output voltage : DC 10-50V continuously adjustable
Output current : 10A MAX exceed 6A please enhance heat dissipation.
Constant range : 0.2-8A
Output Power : = input voltage * 10A
Temperature: -40 – + 85 ℃ ( ambient temperature is too high , please enhance heat dissipation )
Operating frequency : 150KHz
Conversion efficiency : MAX 96%
Overcurrent protection : Yes ( input exceeds 13A, automatically reduces the output voltage , have a range of error . )
Input reverse polarity protection: Yes, ( less than 5A as the need for more in the reverse current in the input string into the diode )
Installation method: 4Pcs 3mm screw holes
Module size : 70*36*13mm（L*W*H）
Weight : 50 g

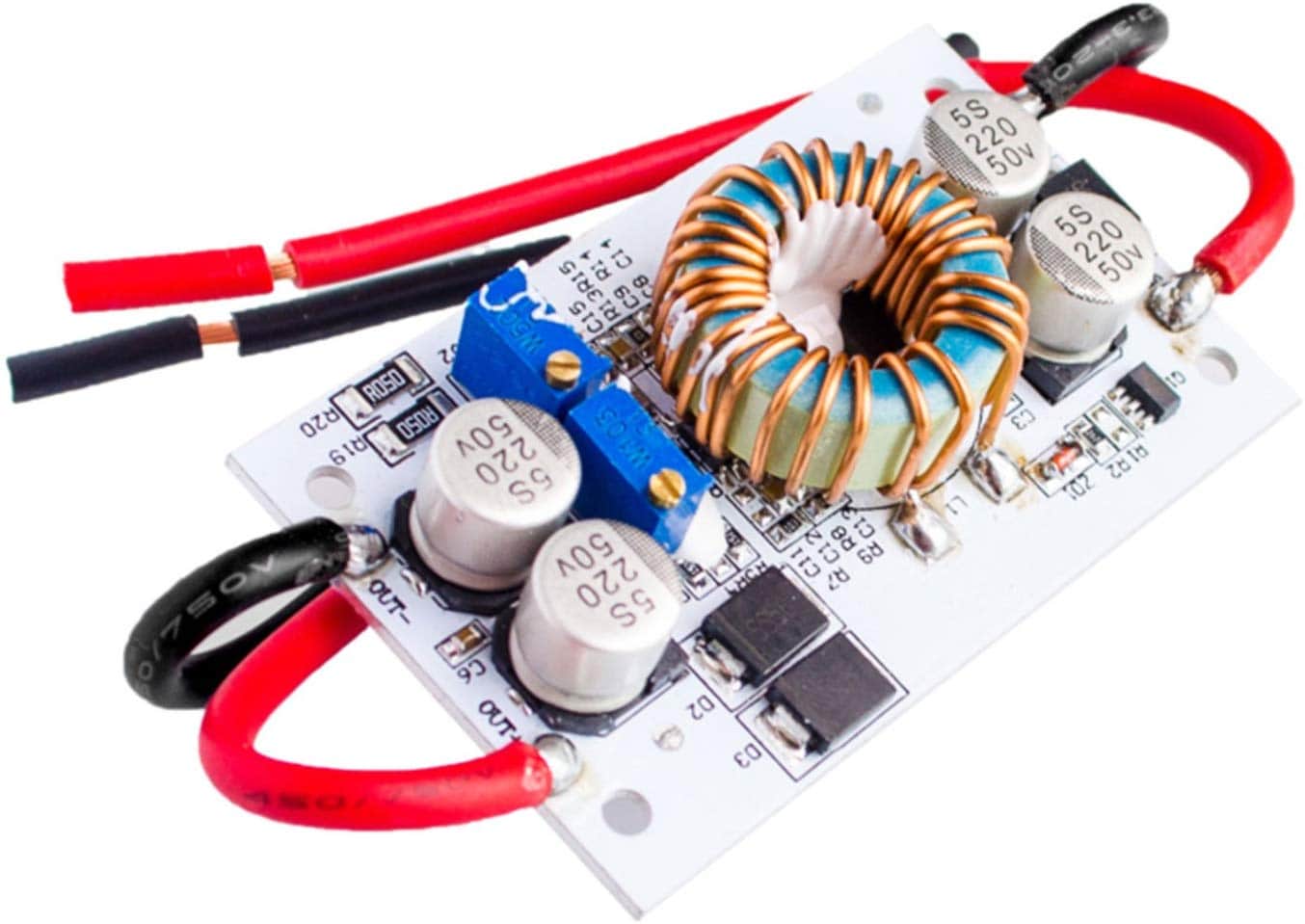

Output voltage / current regulation method :

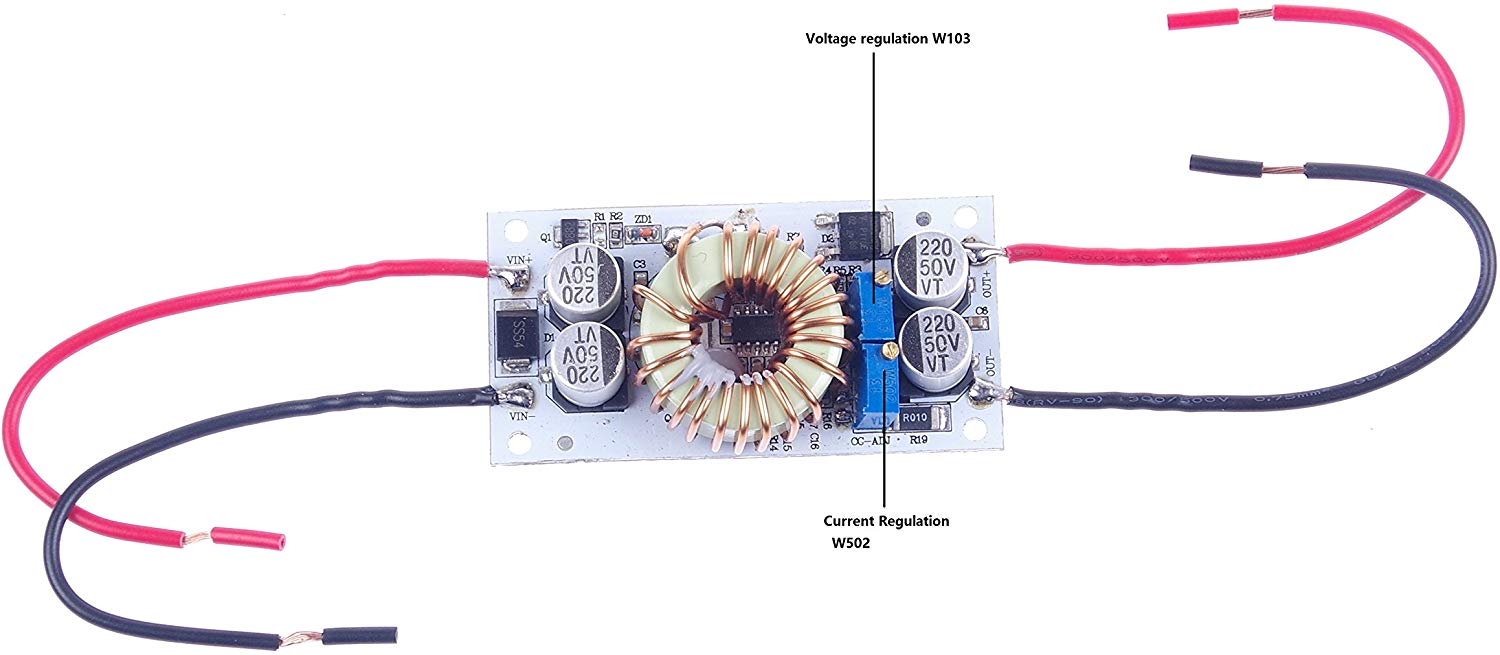

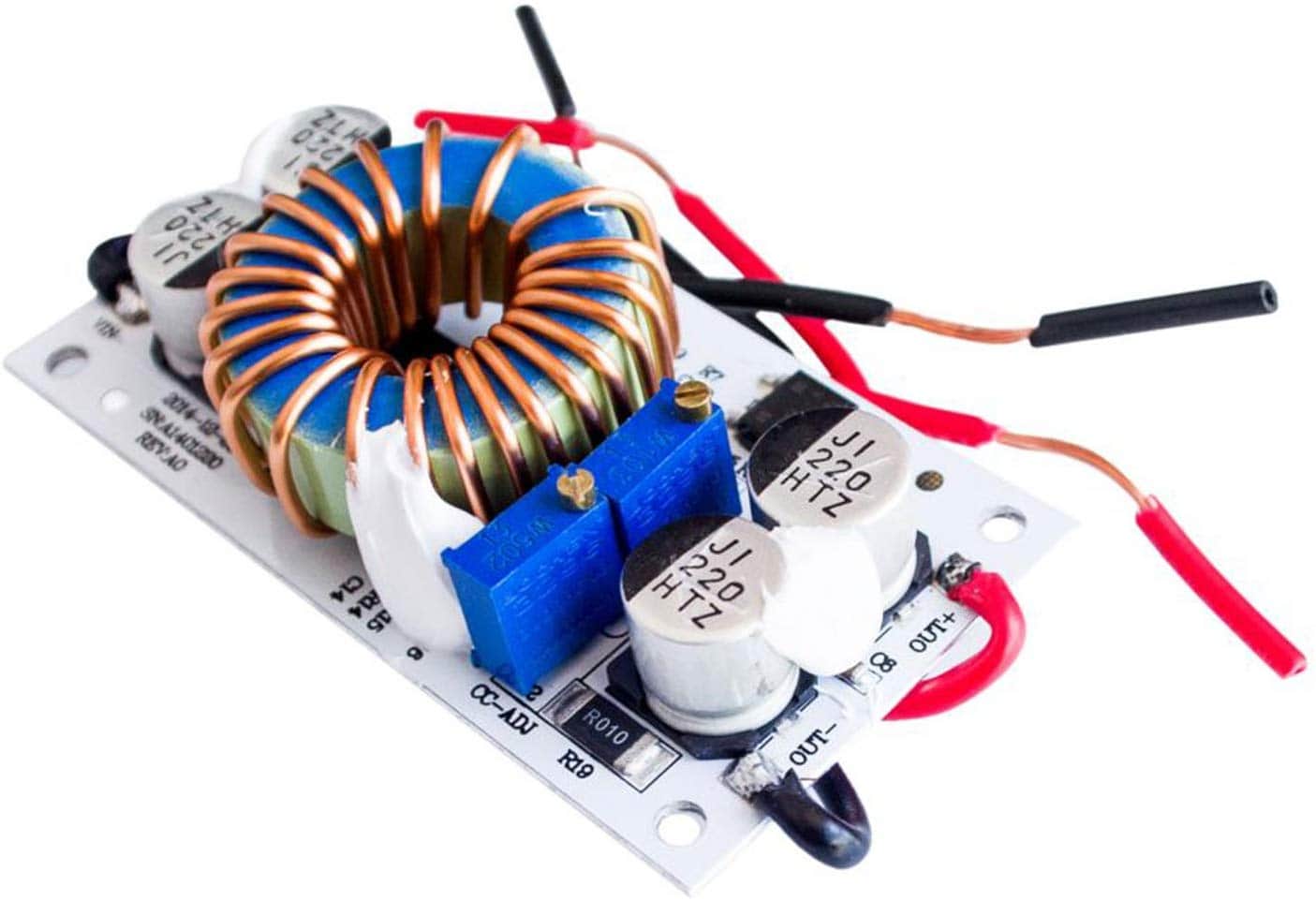

۱ , adjust potentiometer RV1 , according to your battery or LED, the output voltage is set to the voltage value you need . 10 LED string voltage regulator such as 37V.
