اورنج پای دو Orange Pi 2
Hardware specification | ||
CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 | |
Memory (SDRAM) | ۱GB DDR3 (shared with GPU) | |

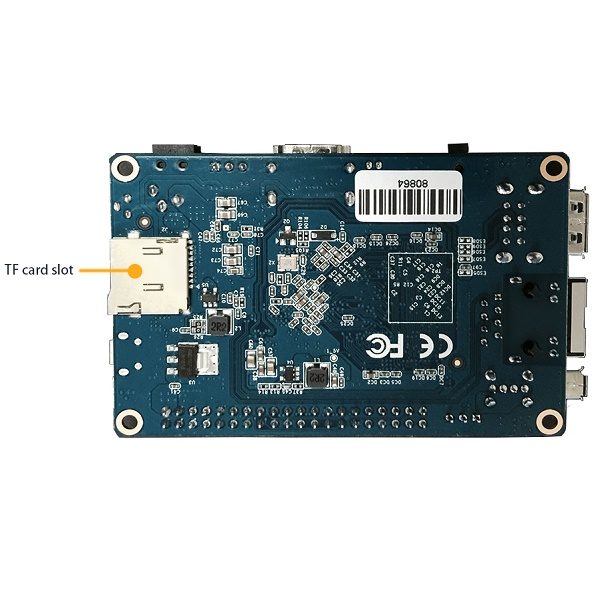

Onboard Storage | TF card (Max. ۶۴GB) / MMC card slot | |
Onboard Network | ۱۰/۱۰۰M Ethernet RJ45 | |
Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n | |
Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps | |
Audio Input | MIC | |
Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS | |
Audio Output | ۳٫۵ mm Jack and HDMI | |
Power Source | DC input can supply power, but USB OTG input don’t supply power | |
USB ۲٫۰ Ports | Four USB 2.0 HOST, one USB 2.0 OTG | |
Buttons | Power Button(SW4), Recovery Button(SW2) UBoot Button(SW3) | |
Low-level peripherals | ۴۰ Pins Header, compatible with Raspberry Pi B+ | |
GPIO(1x3) pin | UART, ground. | |
LED | Power led & Status led | |
Key | IR input,UBOOT,POWER | |
Supported OS | Android Ubuntu, Debian, Raspberry Pi Image | |

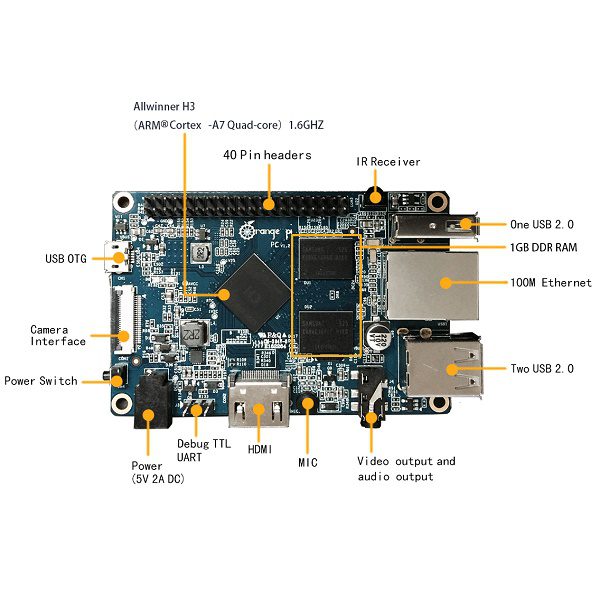

Interface definition | ||
Product size | ۹۳ mm × ۶۰mm | |
Weight | ۴۶g |
Orange Pi 2 is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Raspberry Pi Image, as well as the banana pi Image. It uses the All Winner H3 SoC, and has 1GB DDR3 SDRAM
